Four configurable application scenarios combine edge AI, radar and video evidence for surface and underground mining operations.
01 — APPLICATION

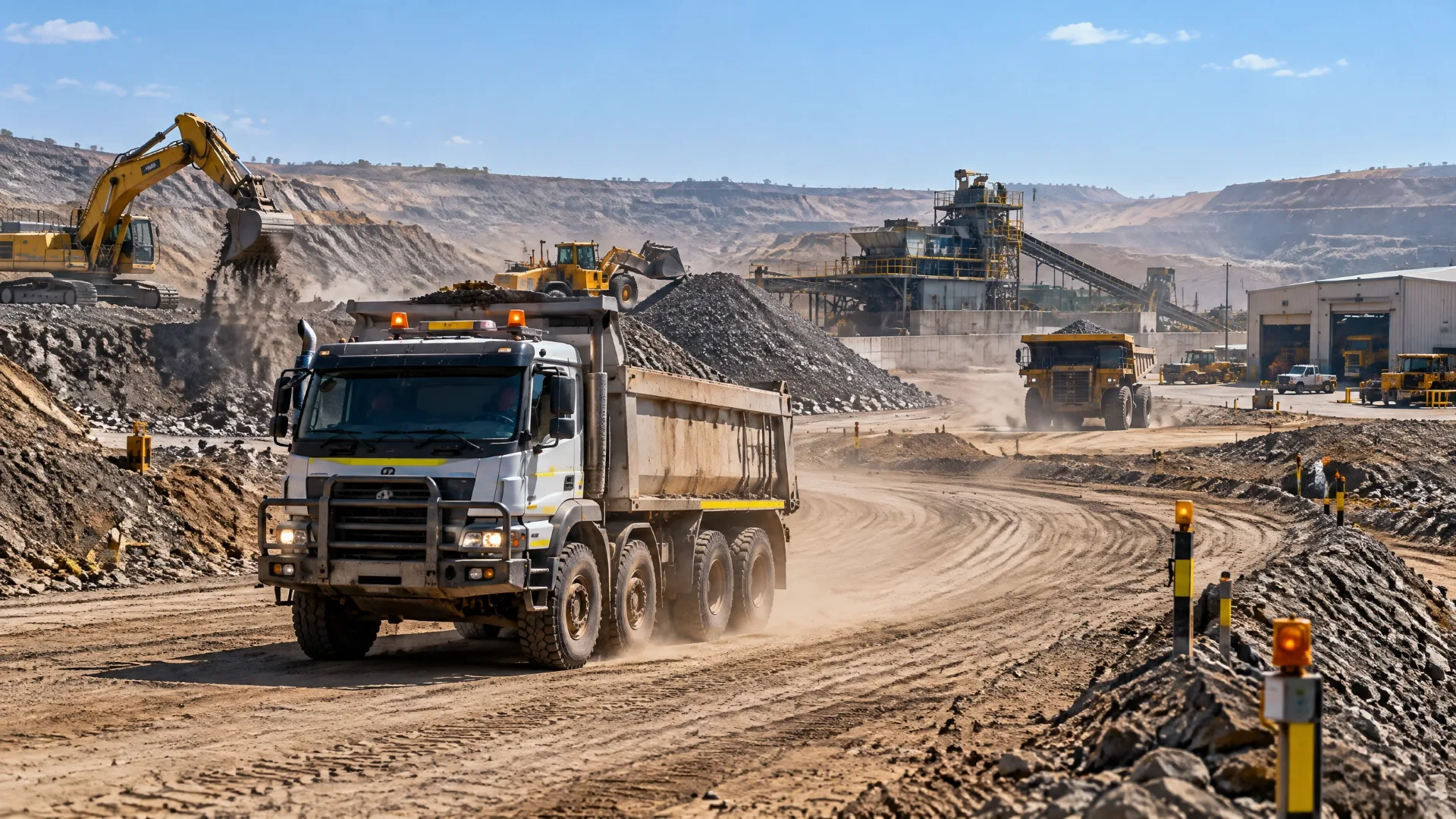

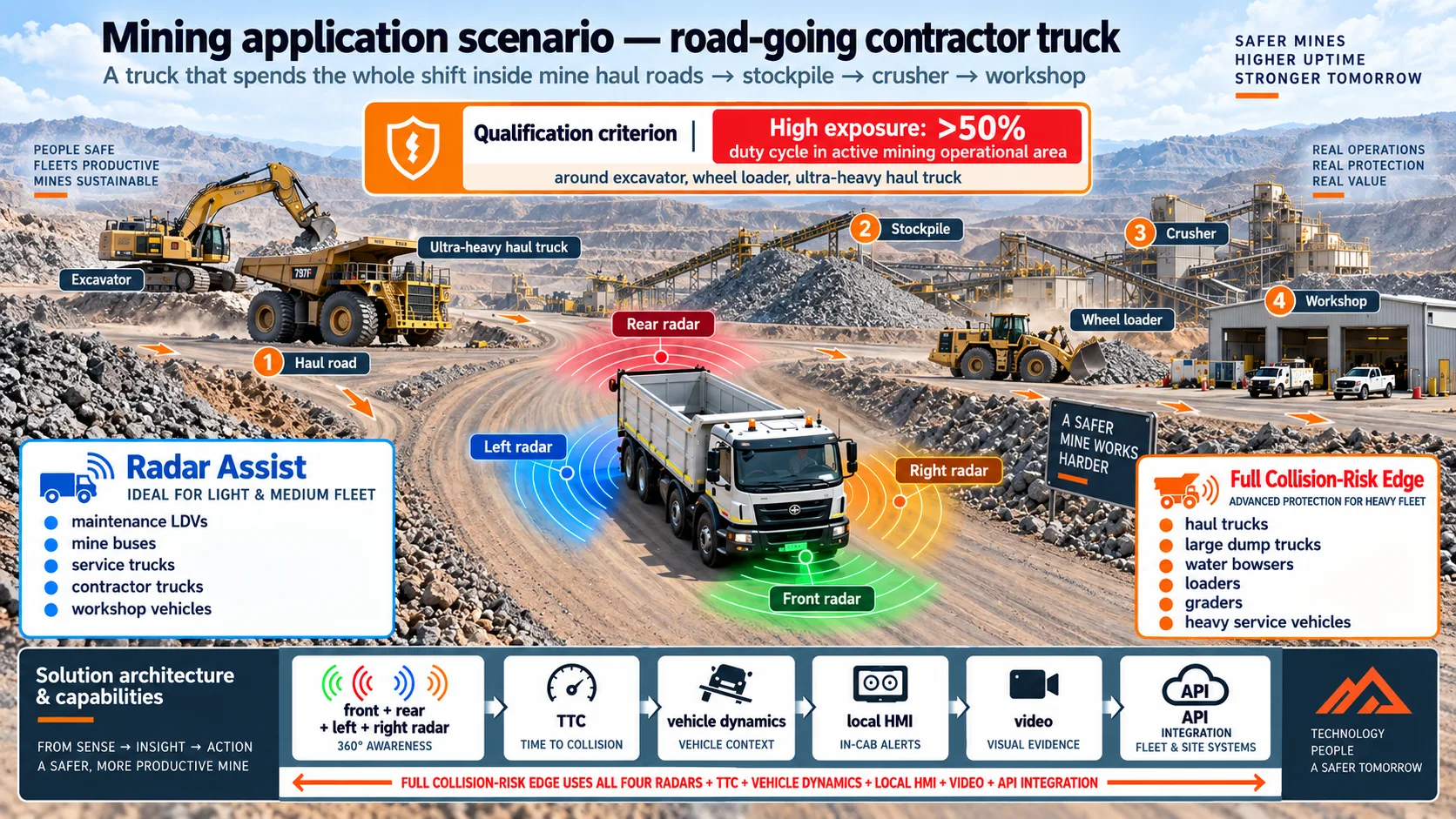

Road-going contractor truck inside mining site
A truck that: spends the whole shift inside mine haul roads → stockpile → crusher → workshop.High exposure: >50% duty cycle in active mining operational area with excavator, wheel loader, extra-heavy haul truck.
Reversing radar assist for:
maintenance LDVs;
mine buses;
service trucks;
contractor trucks;
workshop vehicles.
Full Collision-Risk Edge(front, rear, optional left/right) for:
haul trucks;
large dump trucks;
water bowsers;
loaders;
graders;
heavy service vehicles.
TTC
vehicle dynamics
local HMI
video
API
PRODUCT SOLUTION SYSTEM DIAGRAM
02 — APPLICATION

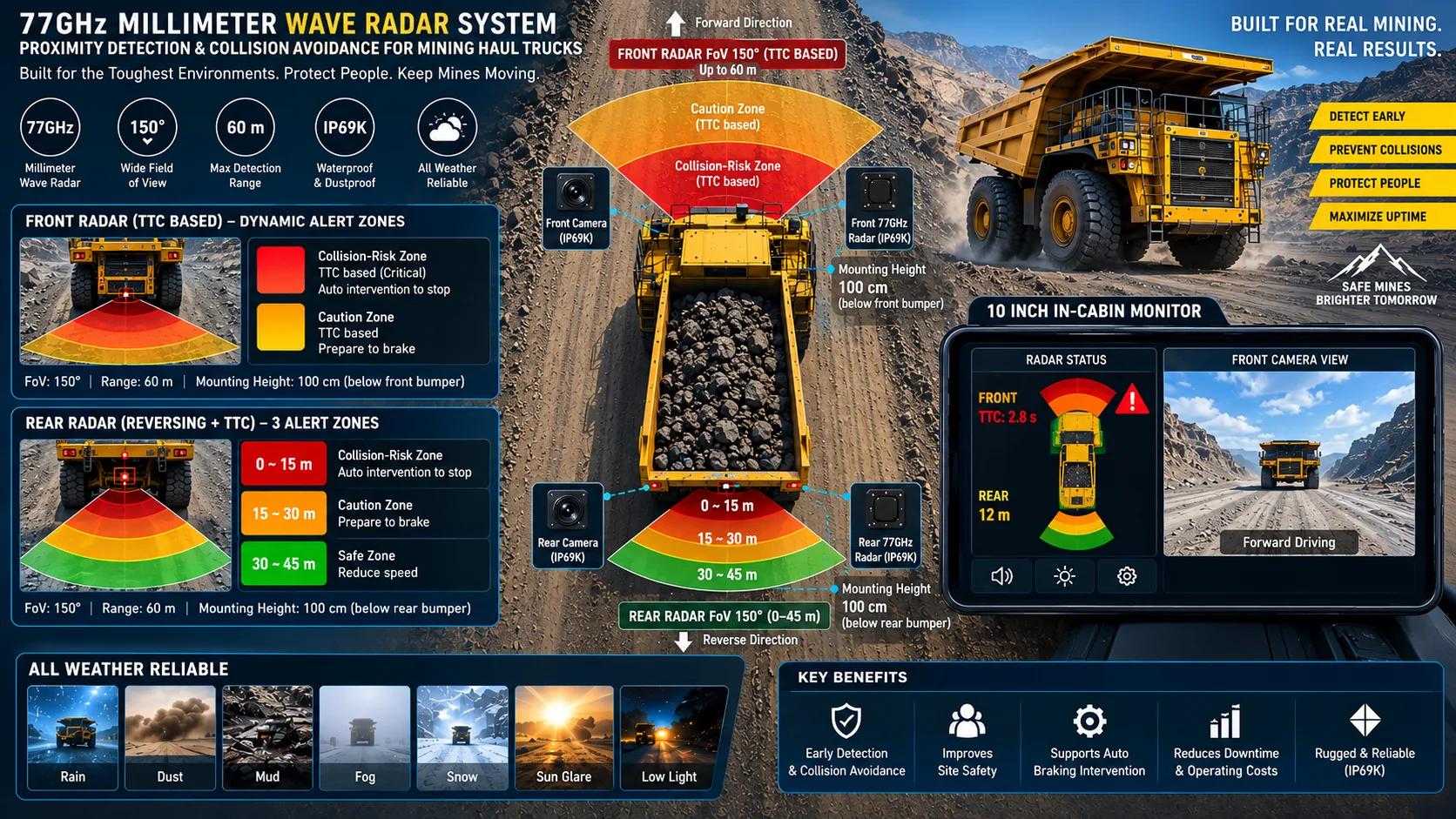

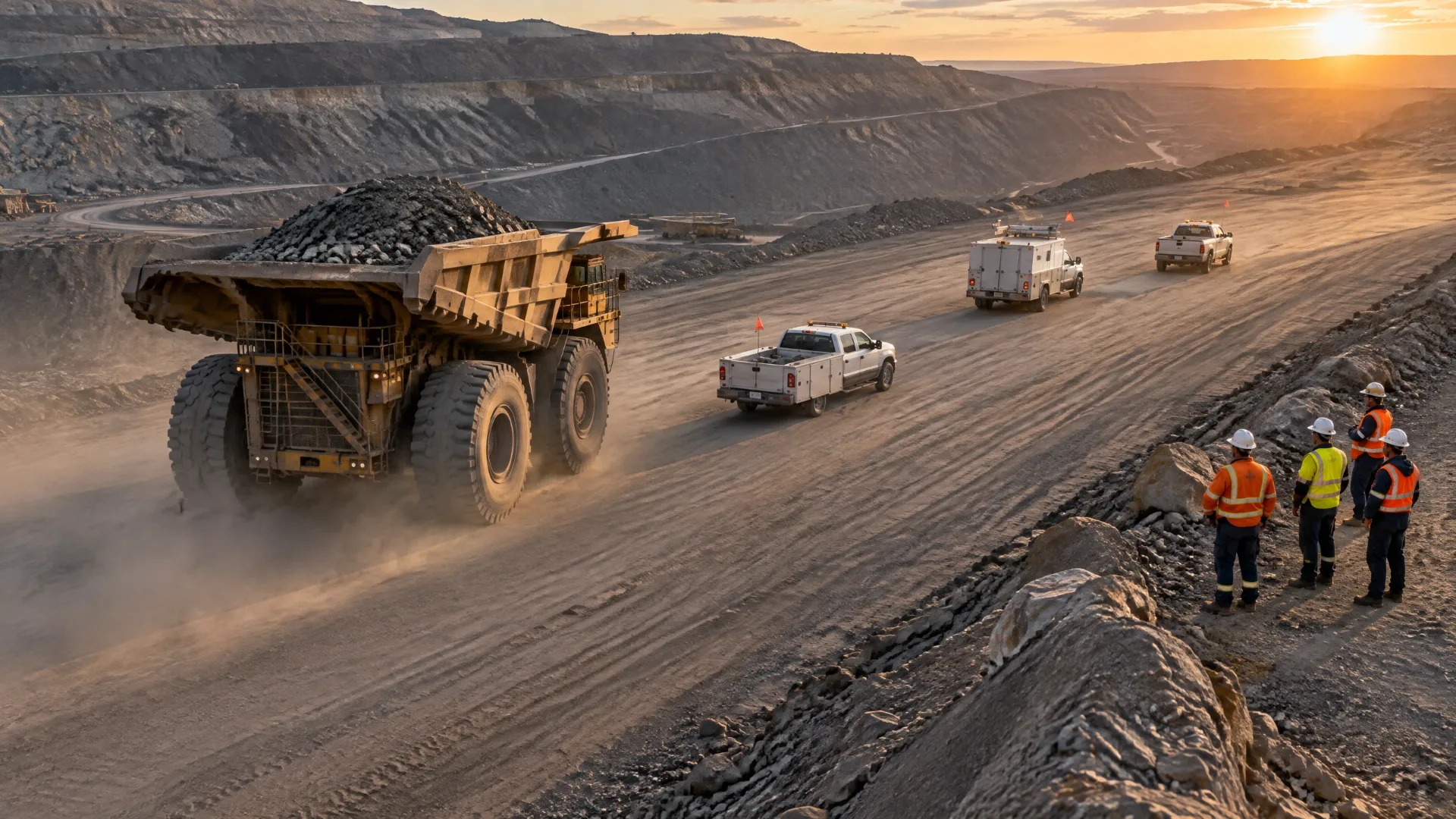

Haul truck in low speed workflow, higher-speed collision-risk edge
Haul truck with duty cycle: loading face → haul road → intersection → queue → dump point → return
Low-speed: queueing; reversing; loading/dumping; workshop movement.
Higher-speed: closing on slower equipment; intersection conflicts; haul-road following.
Recommended: front + rear +camera feed verifcation
with two logic modes:
Low speed: zones + TTC
Higher speed: trajectory + TTC + stopping-distance logic.
PRODUCT SOLUTION SYSTEM DIAGRAM
03 — APPLICATION

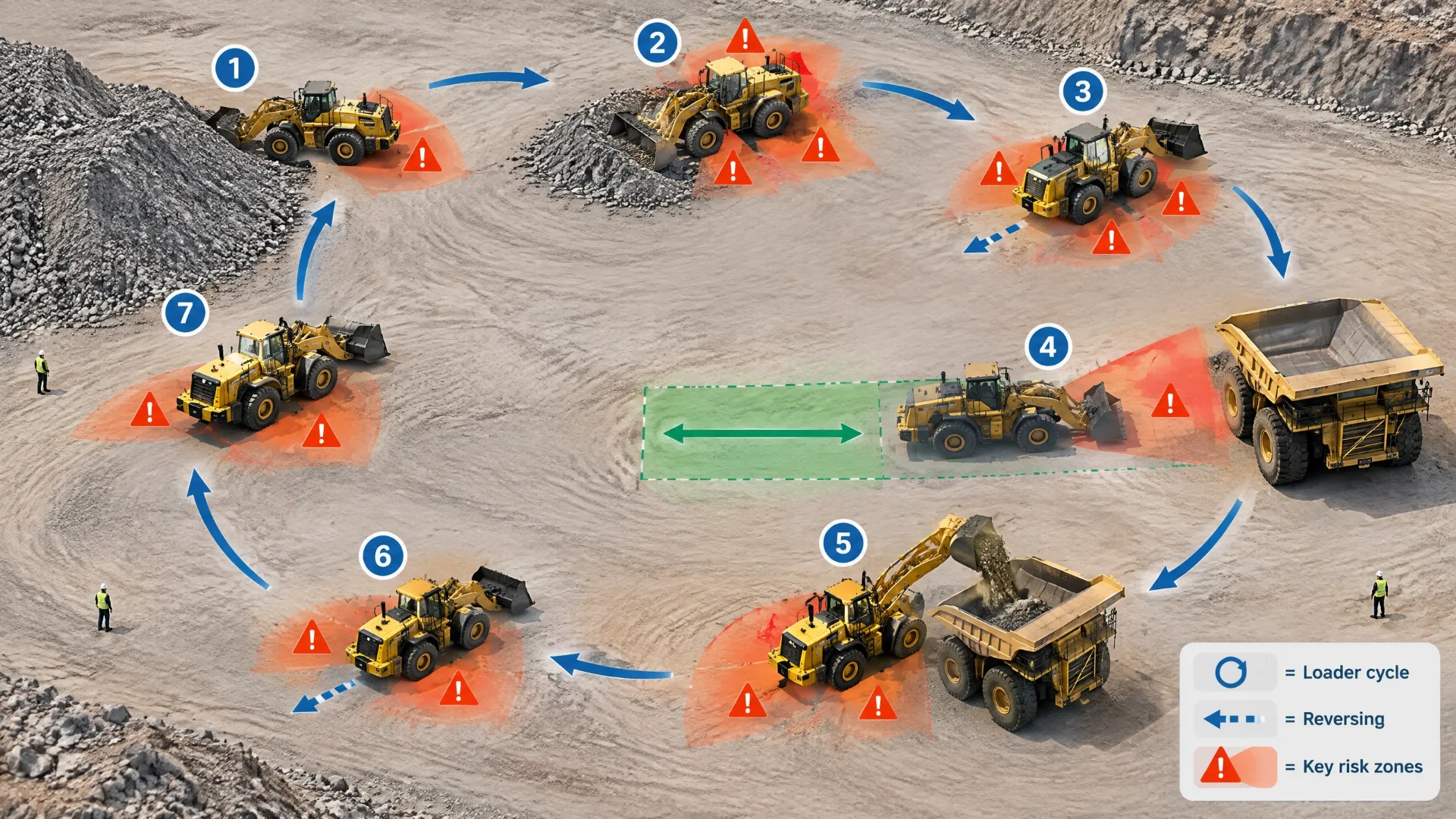

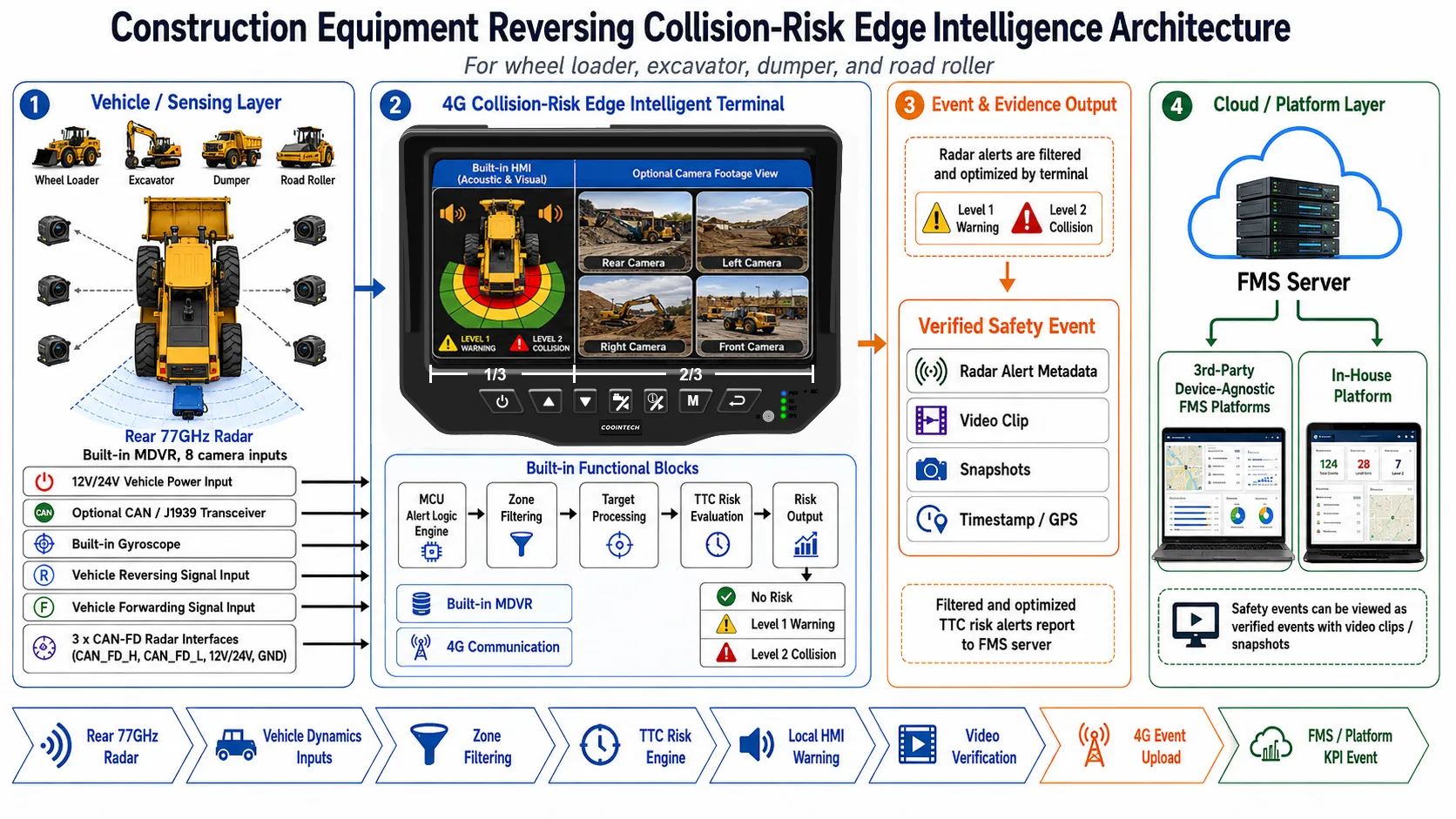

Wheel loader collision-risk in its operating process
Typical duty cycle: approach stockpile → fill bucket → reverse → turn → approach haul truck → dump → reverse → repeat
The cycle is repetitive and reversing-intensive.
Key risk zones: rear; rear-left/right; truck approach side.
Recommended: rear radar + left/right radar with:
reverse input;
steering/yaw;
low-speed gating;
TTC in-cab HMI, camera video feed.

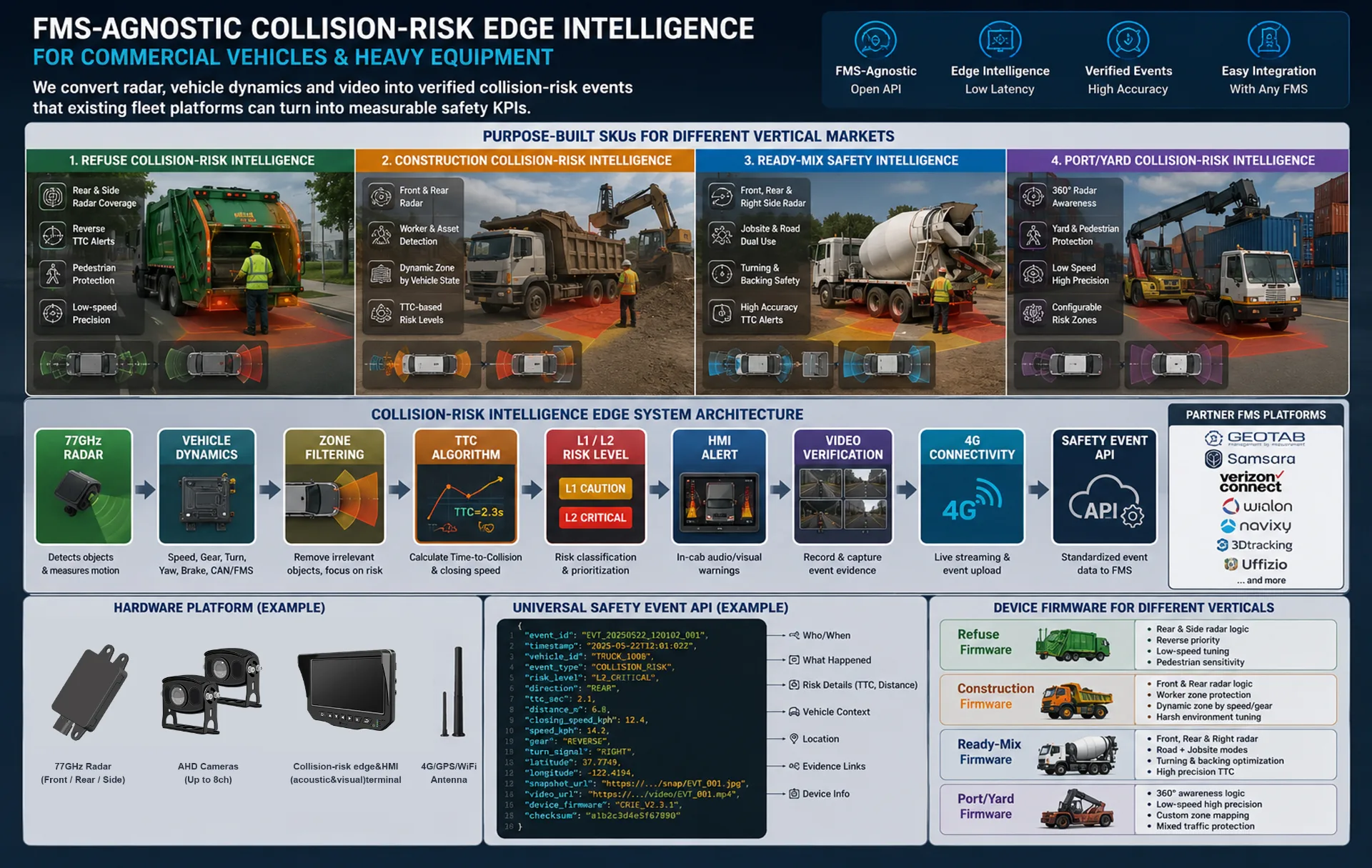

PRODUCT SOLUTION SYSTEM DIAGRAM
04 — APPLICATION

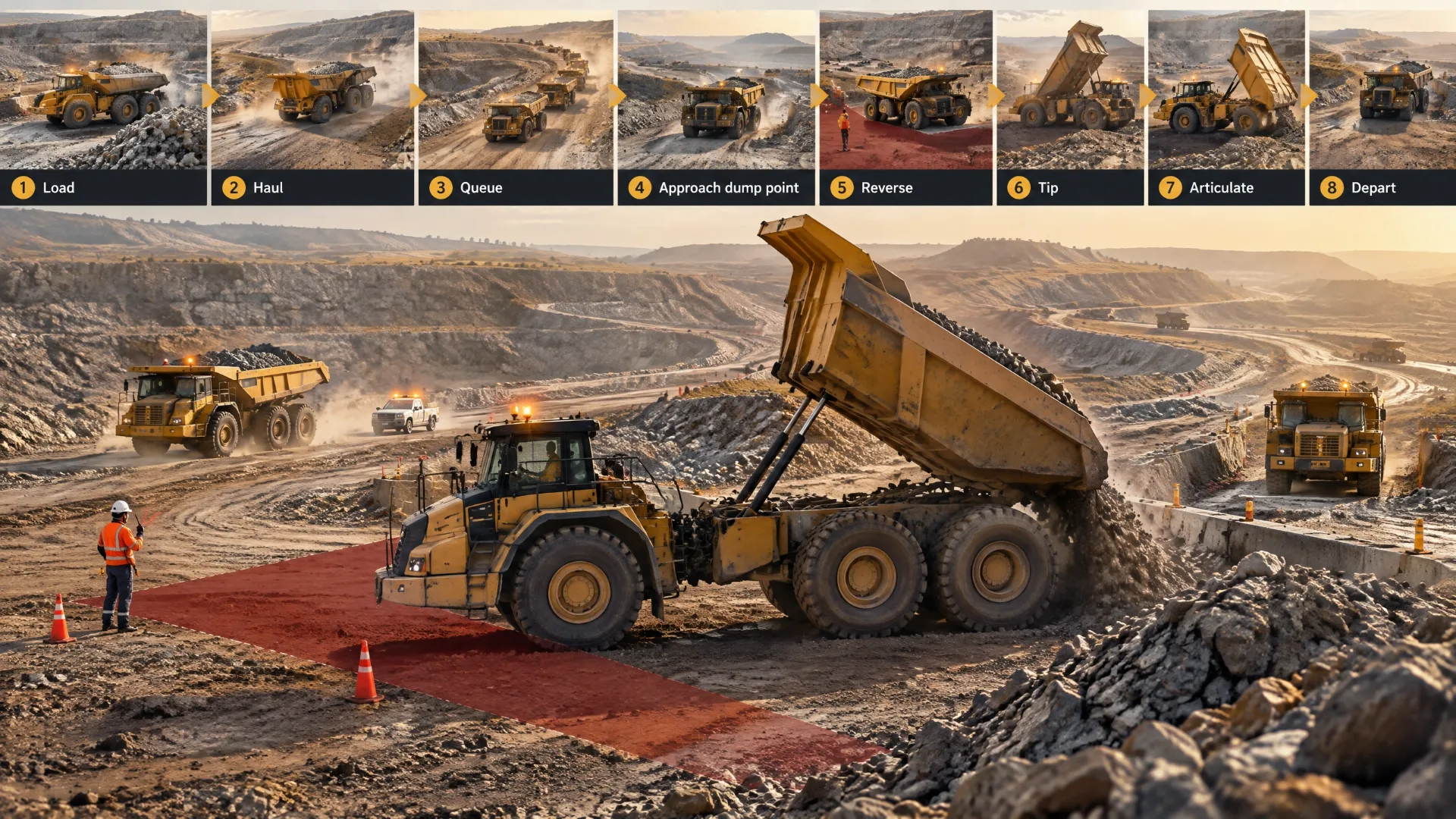

ADT collision-risk in operation
Typical duty cycle: load → haul → queue → approach dump point → reverse → tip → articulate → depart
High risks exposure: articulation changes vehicle geometry; rear blind zone; uneven terrain; mixed construction/mining traffic; reversing near other trucks.
Recommended: rear + side radar as minimum
